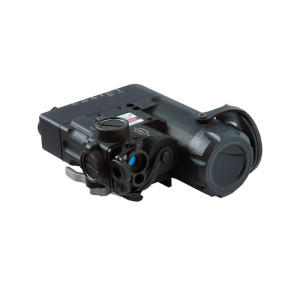

Steiner DBAL-A3 IR illuminator and green laser pointer in a single compact unit
Hot Sale

Steiner DBAL-A3

Steiner
UPC:
000381890085
$1,724.99 $1,327.47
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Available for the commercial market, the first eye-safe IR laser pointer, IR illuminator and green laser pointer in a single compact unit. Features an adjustable IR illuminator for better illumination at longer ranges, dual activation switches and high/low power modes.

The DBAL-A3 civilian model is based on the standard issue DBAL-A3 for U.S. warfighters. And just like the restricted models, this unit offers the latest advances in IR and visible laser technology. The dual-beam infrared laser and illuminator combination is extremely accurate in low- and no-light maneuvers. In addition, the DBAL-A3 is the first to feature new defocused adjustable IR illumination technology to enable both midrange and close quarter target acquisition. The visible green laser's direct diode allows for cold weather operation as low as -20°C.

PRODUCT FEATURES:

  • Low-profile windage and elevation adjusters
  • Dual remote cable ports – remote fire and visible override
  • High and low power modes
  • Single laser activation switch – tap and release for momentary activation, tap twice for 5 minute continuous on
  • Activation/Low battery indicator light
  • 6061-T6 Aircraft Aluminum, MIL-SPEC Type III Hardcoat Anodized Body
  • Attach to any Picatinny rail using patented, self-adjusting Quick Release HT Mount
  • Visible green laser
  • Weight (w/ batteries, dust cover, rail mount, and dual cable remote switch)* 7.7 ±0.4 oz. / 218 ±11.2 grams
  • Submersible to 10 m for 2 hours
  • Top choice for military units worldwide
  • Available in black and desert sand
Additional Information
Laser Color:
Green
Visible Laser:
<5 mW, Class 3R
IR Pointer:
<0.7 mW, Class 1
IR Illuminator:
Class 3R, <4.0 mw
Restricted:
No
Wavelength Visible Red:
NA
Wavelength Visible Green:
520nm +/-3%
Wavelength IR Laser:
850nm +/-3%
Beam Divergence - Red or Green:
0.5+/-0.3 mRad
Beam Divergence IR Laser:
95 to 195mRad
Range/Visibility (Night/Day)* - Visible Green Laser:
<100m
Range Visibility (Night/Day) - IR Laser:
<2500m
Range Visibility (Night?Day) - IR Illuminator:
<4000m
Temperature:
-20° C to +65° C
Battery:
CR123A
Battery Life:
>3 Hours
Material:
Aircraft Aluminum
Color:
Black
Weight with Battery:
8.3 oz / 235 g
Dimensions:
3.7 x 2.7 x 1.7 in
Waterproof:
Submersible to 20m
Mount:
QD HT Mount
Windage/Elevation Adjustment:
yes
Activation Switch:
Integrated Push Button
Remote Cable Pressure Pad:
Yes
